Description

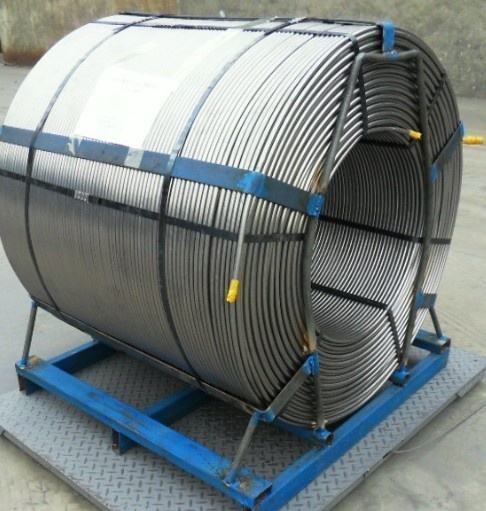

Cored wire is used for steelmaking and foundry.
It can purify the liquid steel, change the impurities shapes, improve the castability of iron and steel, improve the using performance of steel, and significantly enhance the ferroalloy yield rate, reduce alloy consumption as well as the cost of steelmaking in consequence to get remarkable economic benefits.
Advantage
1.Change the composition and morphology of inclusions in steel, improve the mechanical properties of steel
1.Reduce and eliminate nozzle blocking of steelmaking.
3.Improve the recovery rate of alloy elements and stay stability.
Wire technical spec.
Wire Diameter: 13 +/- 0.5mm
Powder weight: 220+/-10%g/m
Maximum coil outside diameter: 1,100mm
Minimum coil inside diameter: 600mm
Absolute maximum coil height: 1,100mm
Maximum coil weight: 2,000 kg
Wire length: 5,000m +/-500m
Sheath thickness:0.4+/_0.05mm
Shelf life:eight months in summer, one year in winter
Storage condition: Package intact and be placed in dry environment indoor.
|
Model |
Spec. (%) |
Wire Dia. (mm) |
Wire Thickness (mm) |
Wire Weight (g/m) |
Powder Weight (g/m) |
Uniformity (%) |
|
SiCa |
Si55Ca28 |
13.0 |
0.4 |
170 |
230 |
2.5--5 |
|
SiAl |
Ca20-50Al10-30 |
13.0 |
0.4 |
170 |
210 |
2.5--5 |
|
CaFe |
Ca 20-35 |
13.0 |
0.4 |
170 |
215 |
2.5--5 |
|
SiCaBa |
Si55Ca15Ba15 |
13.0 |
0.4 |
170 |
220 |
2.5--5 |
|
SiAlBa |
Si 35-40 Al 12-16Ba 9-15 |
13.0 |
0.4 |
170 |
215 |
2.5--5 |
|
TiFe |
Ti25-40 |
13.0 |
0.4 |
170 |
150 |
2.5--5 |
|
SiAlBaCa |
Si 35-45 Al 12-18Ba 6-12 Ca 9-14 |
13.0 |
0.4 |
170 |
510 |
2.5--5 |
|
Carburant |
C 98 S 0.5 |
13.0 |
0.4 |
170 |
225 |
2.5--5 |
|
C |
90 min |
95min |
98min |
|||
